The Story

Included:

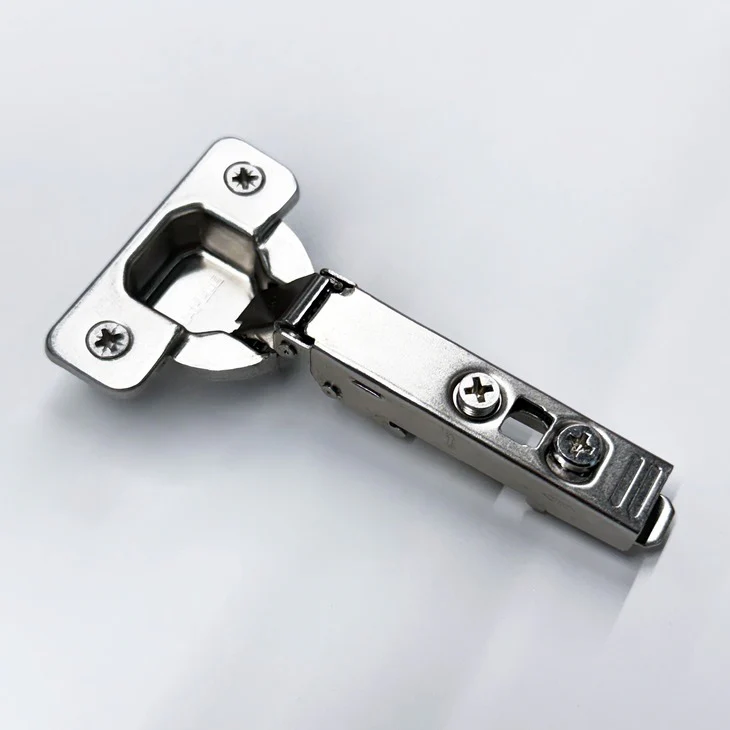

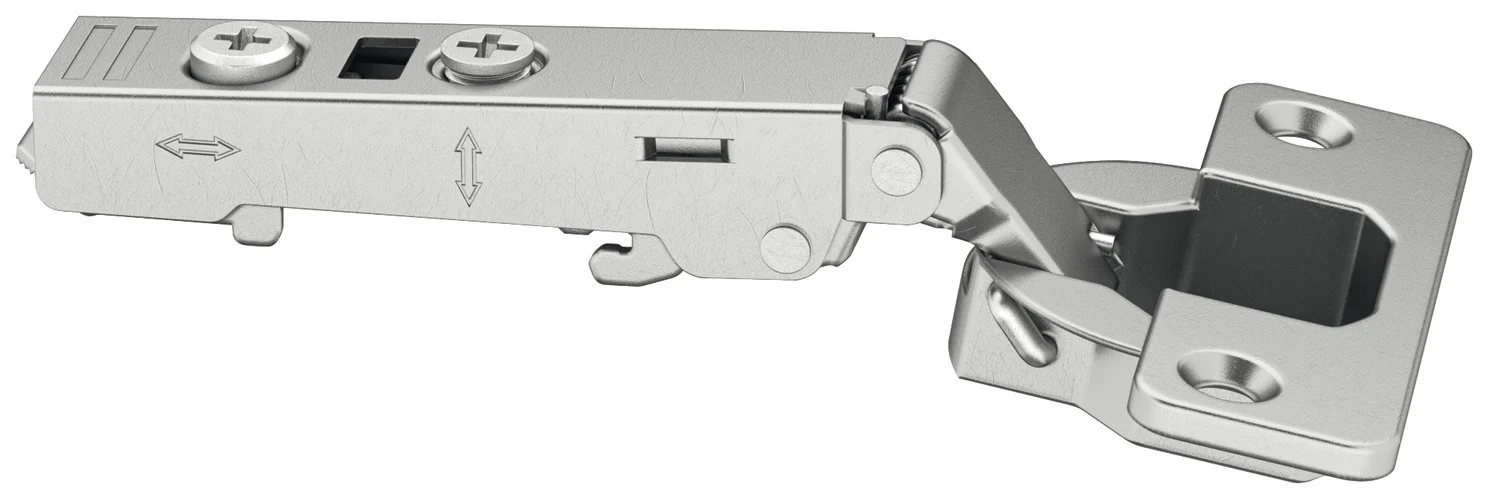

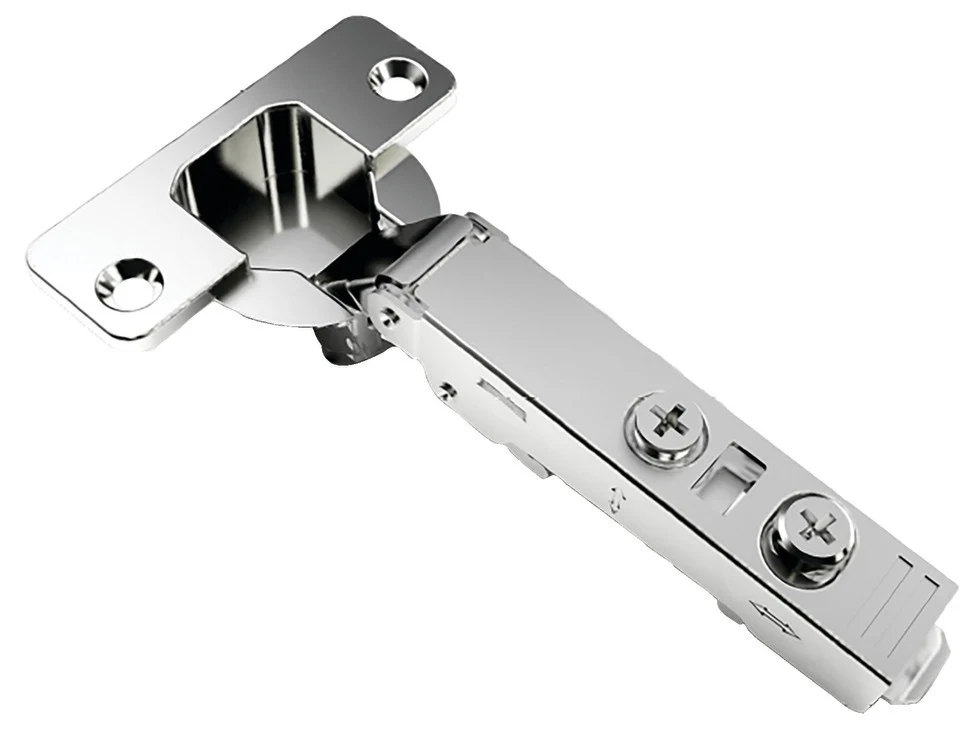

1 = Hafele Soft-close concealed hinge, Häfele Metalla 310 SM 110°, full overlay mounting (311.04.257)

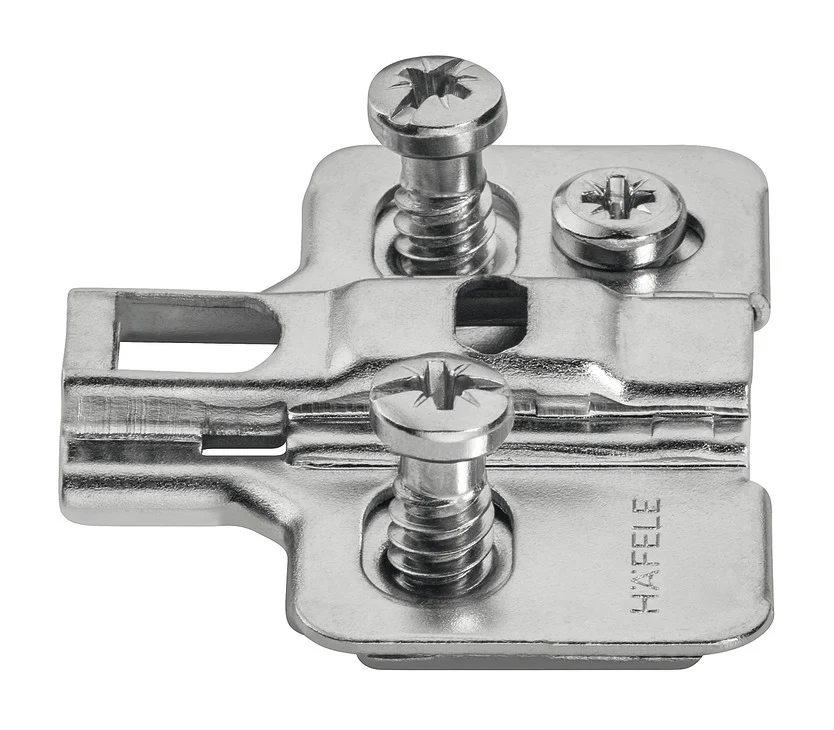

1 = Hafele cruciform mounting plate, Häfele Metalla 310 SM, with quick fixing system, height adjustment ±2 mm via eccentric, with pre-mounted Euro screws (311.70.620)

Hinge Specs :

Area of application

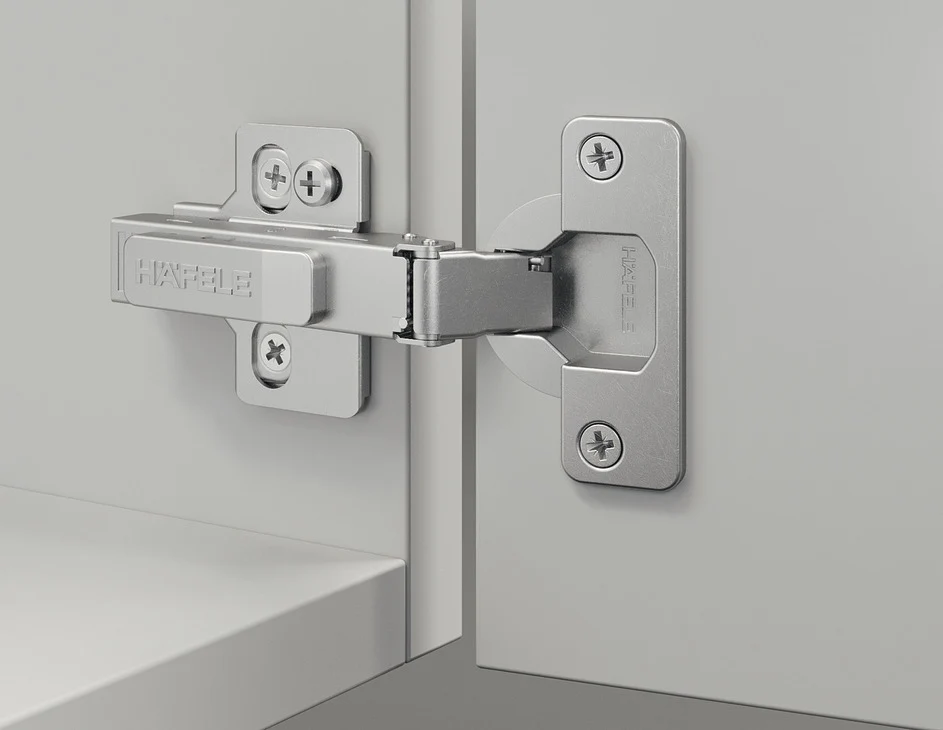

for standard applications like cabinet doors, full overlay mounting

Function

With automatic closing spring, With soft closing mechanism

Crank type

Straight

For door material

wood

Product Material

Steel

Colour/finish

nickel plated

Opening angle

110°

Cup drilling depth

12 mm

Cup drilling Ø

35 mm

Cup fixing

For press fitting

Adjustment facility

height adjustment ±2 mm (via mounting plate)

Installation

Door on cabinet with quick fixing system SM

Hinge Plate Specs :

Area of application

For Häfele Metalla 310 SM concealed hinges

Product Material

Steel

Colour/finish

nickel plated

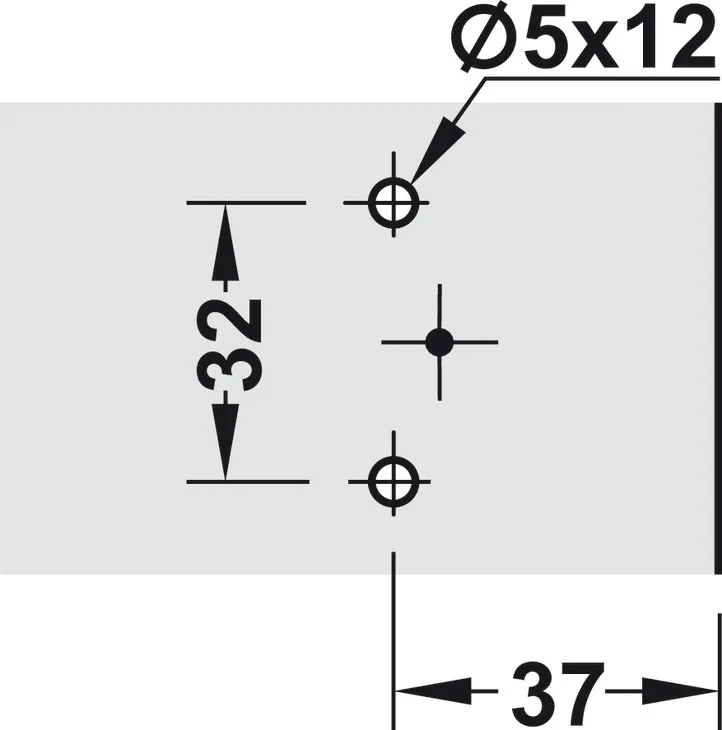

For drill hole Ø

5 mm

Screw distance

32 mm

Edge distance

37 mm

Adjustment facility

Height adjustment Via eccentric ±2 mm

Fixing method

Quick fixing system SM

Mounting plate version

For screw fixing with pre-mounted Euro screws

Manufacturer

Häfele

Model series

Metalla 310 SM

By Hafele, distributed in Australia by Trademaster
